Lightweight Base Mod - OP1w 4k, OP1w 4k v2 & OP1we

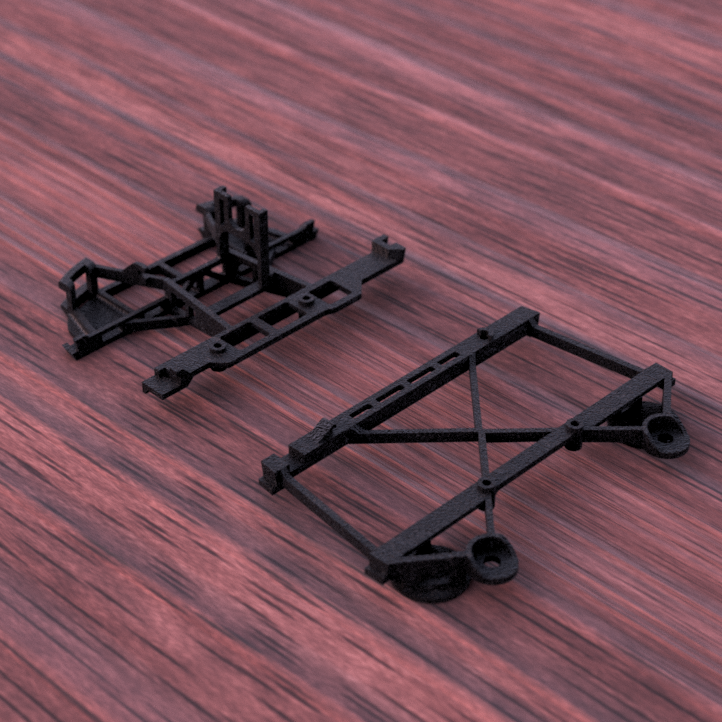

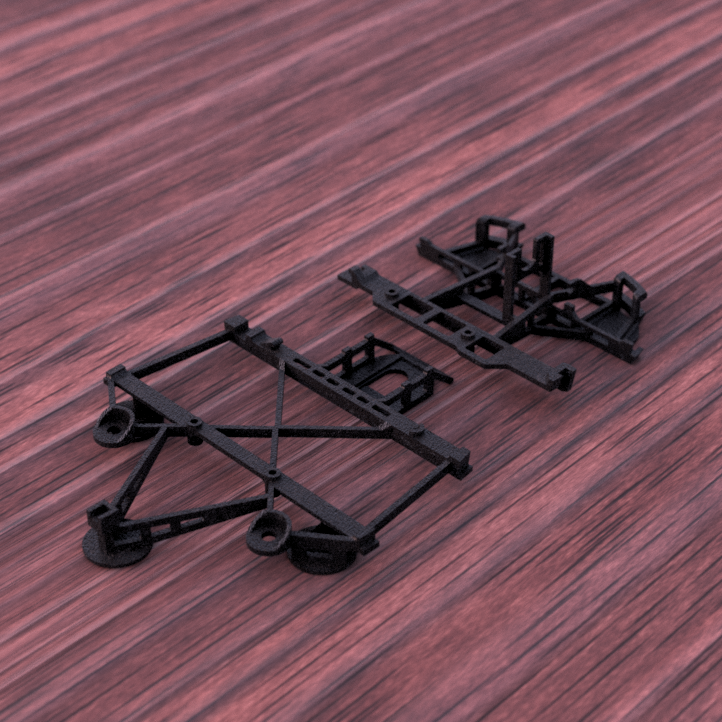

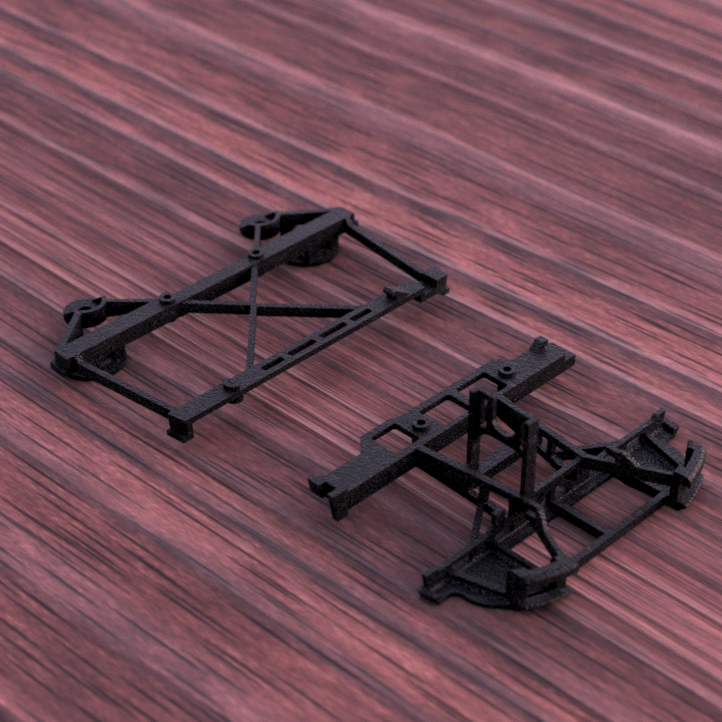

Lightweight base designed for the wireless models of Endgame Gear's OP1.

Installation guide
Guide to getting base flat on glass

Unlike others, this base offers shell support and maintains the original feel of the middle mouse button while being as lightweight as possible.

It's ~2.45g stock, around 8.1g lighter than the stock base and battery holder, which weigh 10.55g. If you don't need the back skate pad or sensor skate pad, you can cut them off with flush cutters to save another 0.5g, bringing it down to 1.95g.

It comes with nano tape (which doesn't leave adhesive residue) so you can attach the battery either to the top of the sensor or on the battery's JST connector to balance the weight as you prefer.

The OP1 stock skates weigh 1.33g, replacing them with donut/dot skates saves ~1g.

Expected weight with all skate pads intact and 4 dots applied:
 Base - 49.45g
 Base + Lighter Scroll - 48.15g
 Base + Lighter Scroll + 150mAh Battery (1.5mm 3 pin plug) - 43.5g

Package includes:
 Lightweight Base
 Nano Tape
 Screw to secure base to pcb (optional)
 Washers for hard pads (guide above)
